product description

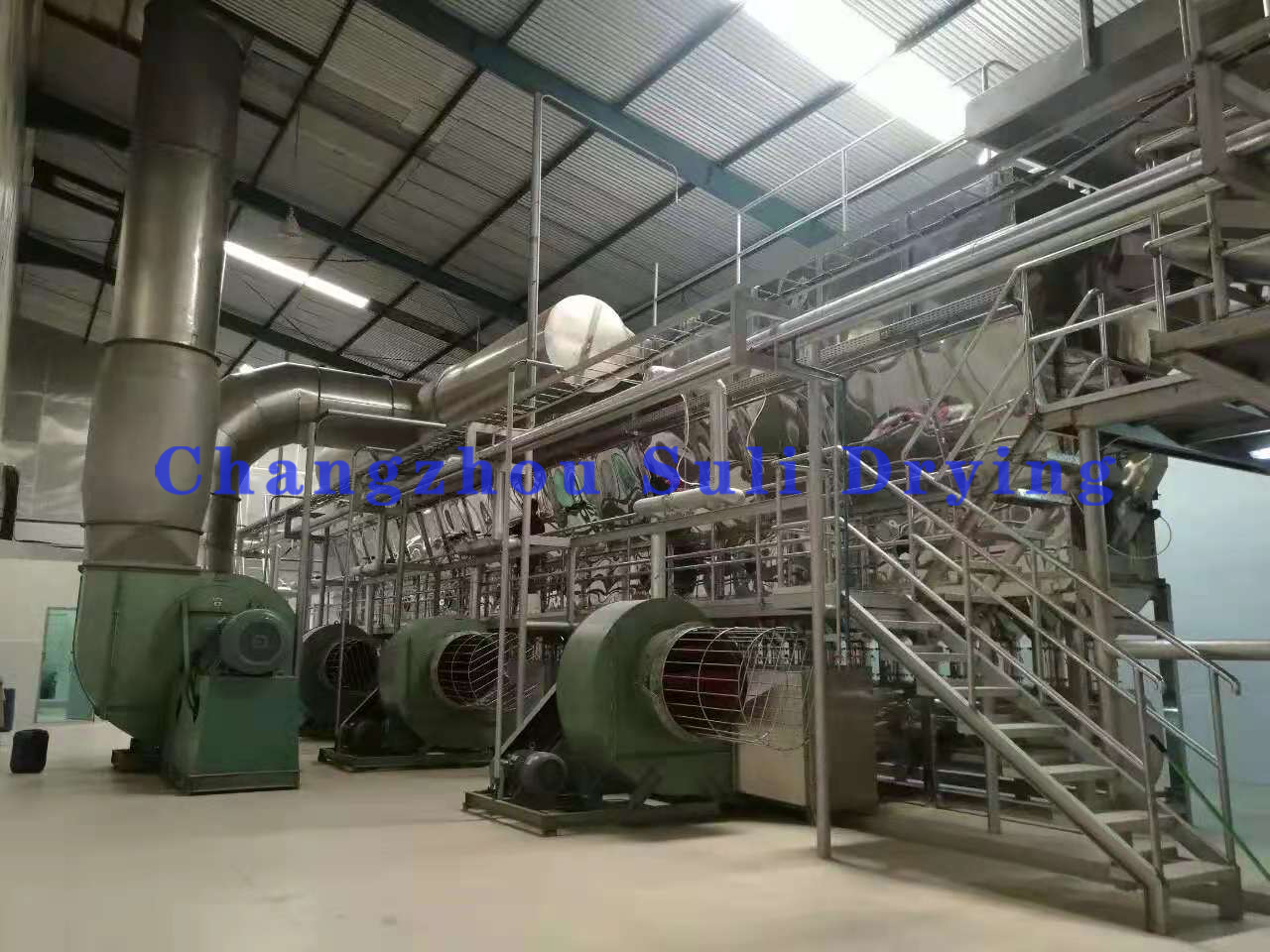

Boiling and dry, also known as the fluidized bed, is composed of
air filters, heater, boiling bed hosts, whirlwind separators, bag
dust collectors, high -pressure centrifugal fans, and operating
desks. , Can be considered as needed, you can choose a whirlwind
separator and a bag dust collector at the same time. One of them
can also be selected. Generally speaking, a large proportion of the
granular and particles is dry. The shape and powder materials need
to be equipped with a bag dust collector, and it is equipped with a
powerful feeding device and a belt conveyor for selection.
The dispersal solid material is added to the fluidized bed dryer by
the feeder. After the filtered clean air is heated, it will be sent
to the bottom of the fluidized bed and contacts the solid material
to form a hot and solid heat exchange. After the material is dry,
it is discharged by the discharge port. The exhaust gas is
discharged from the top of the boiling bed.
Steam, electricity, and hot air furnaces are available (supporting
according to user requirements).
working principle
The clean thermal wind is allocated into the bed through the valve
board, and the wet material entered from the feeder is boiled by
the hot air. Due to the widespread contact with the materials and
materials, it enhanced the process of heat transfer, so it can be
dried in a short period of time. If the continuous type is used,
the material enters from one end of the bed, boiling and dry after
dozens of seconds to a few minutes, and automatically flows out of
the other end of the bed. This device generally perform negative
pressure operations.
Adapting material
◎ Dry operations of pharmaceuticals, chemical raw materials, food,
food processing, and feed. Such as: raw medicine, pressure tablets,
Chinese medicine granules, health foods, beverage granctions, corn
germ, feed, plastic resin, citric acid and other powder materials.
The particle size is generally 0.1 to 6mm, and the particle size is
0.5 to 3mm.
Installation Notes
◎ Each device needs to be flattened, fix with the bottom screw, and
the components are well sealed.
◎ The fan can be placed outdoors or self -built self -built
consumer sound rooms. The plane layout can be adjusted as
appropriate according to the specific situation.
Technical specification
Specification Technical Parameters | XF0.25-1
(Original XF10) | XF0.25-2
(Original XF20) | XF0.25-3
(Original XF30) | XF0.25-6 | XF0.3-2 | XF0.3-4 | XF0.3-6 | XF0.3-8 | XF0.3-10 | XF0.4-4 | XF0.4-6 |
| Bed area(m2) | 0.25 | 0.5 | 1.0 | 1.5 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 1.6 | 2.4 |
Dry ability
(kg h2O/h) | 10-15 | 20-25 | 30-45 | 52-75 | -30 | 42-60 | 63-90 | 84-120 | 105-150 | 56-80 | 84 |
| Fan power (kw) | 5.5 | 7.5 | 15 | 22 | 7.5 | 18.5 | 30 | 37 | 48 | 30 | 37 |
| Air inlet temperature (oC) | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 |
| Material temperature (oC) | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 |
Host shape size Long × width × height(m) | 1×0.6 | 2×0.6 | 4×0.6 | 6×0.6 | 2×0.70 | 4×0.7 | 6×0.7 | 8×0.7 | 10×0.7 | 4×1 | 6×1 |
| Land (m2) | 18×3.35 | 25×3.35 | 35×3.35 | 40×3.35 | 25×3.4 | 38×3.4 | 45×3.4 | 56×3.4 | 70×3.4 | 18×3.58 | 56×3.58 |
Specification Technical Parameters | XF0.4-8 | XF0.4-10 | XF0.4-12 | XF0.5-4
(原XF50) | XF0.5-6 | XF0.5-8 | XF0.5-10 | XF0.5-12 | XF0.5-14 | XF0.5-16 | XF0.5-18 |
| Bed area(m2) | 3.2 | 4.0 | 4.8 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 9.0 |
Dry ability
(kg h2O/h) | 112-160 | 140-200 | 168-240 | 70-100 | 140-200 | 140-200 | 175-250 | 210-300 | 245-350 | 280-400 | 315-450 |
| Fan power(kw) | 44 | 66 | 66 | 30 | 66 | 66 | 90 | 90 | 150 | 150 | 165 |
| Air inlet temperature (oC) | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 |
| Material temperature (oC) | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 |
Host shape size Long × width × height(m) | 8×1 | 10×1 | 12×1.2 | 4×1.2 | 8×1.2 | 8×1.2 | 10×1.2 | 12×1.2 | 14×1.2 | 16×1.2 | 18×1.2 |
| Land (m2) | 74×3.58 | 82×3.58 | 96×4.1 | 50×4.1 | 70×4.1 | 82×4.1 | 100×4.1 | 140×4.1 | 180×4.1 | 225×4.1 | 268×4.1 |
Note: 1. Method method: 1. Star -shaped feed;
2. Star -shaped feed type and force transport and use;
3. Belt conveying;
4. user self -determined.
2(1). Can realize automated production.
(2). In addition to the above models, it can be specially designed
for users.
(3). Depending on the materials, the fan power is also different.
