Overview:
In the scattered body that coexist with solid powder and liquid and
is dominated by solid phases, the decentralized auto -adhesion (or
external adhesive) is used to use compulsory methods (such as
squeezing, gravity, centrifugal force, mechanical power, air flow
impulse, etc. ) Make the basic particles of solid powder bond and
increase each other. And form a certain shape and granularity,
concentrated particle group. The wet granules are composed of mixed
(pinch), granular, drying and its auxiliary system equipment. After
the powder is mixed (pinching), it enters the wet product required
to form the granularity. The granular finished product is obtained
through drying, thereby achieving the purpose of granules.

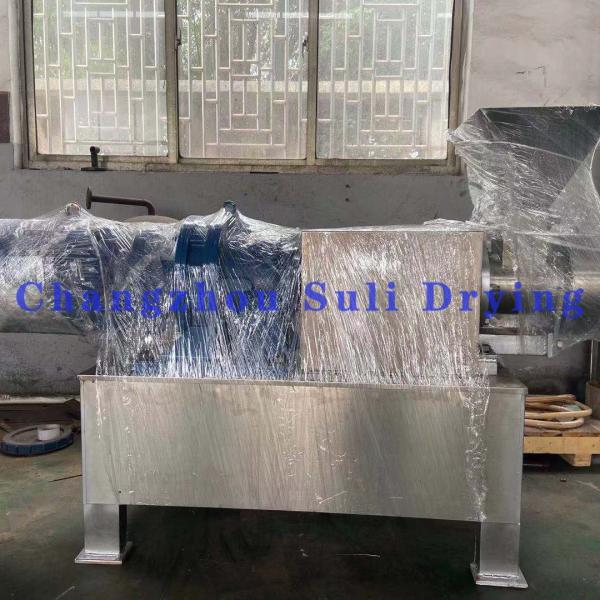

The SET single screw extrusion squeezer is divided into front
materials and side materials. The diameter of the previous material
formula is generally selected between 1.5-12mm. Choose the shape of
the particles to be cylindrical, the granularity rate is ≥95%. The
production port is equipped with a cut particles. The long strip is
dry and naturally becomes a section of particles. The speed is
fast.
Scope of application:
It is widely suitable for products that require granules such as
rubber auxiliary, food additives, plastic additives, powdery
activated carbon, catalysts, feed, pesticides, dyes, pigments,
daily chemicals, pharmaceuticals and other industries.
The main advantage:
Due to the completion of the processing process in the wet state,
the operation conditions of the granules and its subsequent
processes (such as dryness, packaging, etc.) have been greatly
improved. Generally, it can reduce the on -site dust of more than
90%. Through granulation, it can avoid the phenomenon of use,
bridges, pulsating, etc. that are prone to appear in powder
products. At the same time, the secondary pollution caused by the
use of powder is avoided, which greatly improves the physical
properties of the product. Under normal circumstances, the
accumulation proportion of granular products has increased
significantly, so it can save space for transportation, storage,
and packaging. For multiple composite and mixed products,
granulation can avoid bias analysis of each group, thereby truly
ensuring the quality of composite products.
Technical specification
| model | Screw diameter | Motor Power [kw] | Rotating speed [rdivm] | Dimensions L*D*H [mm] | weight [kg] |
| SET-100 | 100 | 7.5 | 11-110 | 1800*500*1000 | 810 |
| SET-140 | 140 | 15 | 11-110 | 2000*800*1430 | 1000 |
| SET-180 | 180 | 15 | 11-110 | 3000*950*1350 | 2000 |
