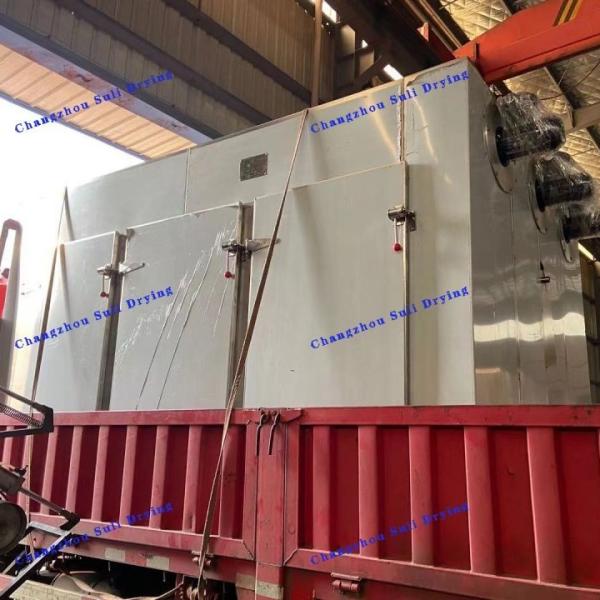

Product introduction
CT-C series hot air circulation oven is equipped with low noise and
high temperature axial fan and automatic temperature control
system. The whole circulation system is completely closed, so that
the thermal efficiency of the oven is increased from 3-7% in the
traditional drying room to the current 35- 45%, the highest thermal
efficiency up to 50%. The success of the CT-C hot air circulation
oven has made the hot air circulation oven in China reach the
advanced level at home and abroad. Save a lot of energy for our
country and improve the economic benefits of the company. In 1990,
the State Administration of Pharmaceuticals released the industry
standard, and the uniform model is RXH.
The heating source is steam, electricity, far infrared, and
electric vapor for users' choices.
Using temperature: Steam heating 50-140℃, maximum 150℃;
Electricity, far infrared temperature 50-350℃;
Auto-control system and computer control system are available for
users to choose from.
Common steam pressure is 0.02-0.8MPa (0.2~8kg/m² ).
Equipped with electric heating, calculate 15KW according to type I,
practical 5-8kw/h;
Special requirements when ordering instructions;
Non-standard oven price negotiable;
Use the temperature is greater than 140℃or less than 60℃, to indicate when ordering;
Factory factory car baking, baking tray size uniform,
interchangeable;
Baking plate size: 460 × 640 × 45 (mm).
Performance characteristics
Most hot air circulation in the box, high thermal efficiency, save
energy. The use of forced ventilation, the box is equipped with
adjustable split air plate, the material is evenly dry, the heat
source can be steam, hot water, electricity, far infrared, and a
wide choice. The whole machine is low in noise and balanced in
operation. Temperature control, easy installation and maintenance.
With a wide range of application, it can dry various materials and
is a universal drying equipment.
Adaptable materials are
Suitable for heat curing, drying and dehydration of materials and
products in the pharmaceutical, chemical, food, agricultural and
sideline products, aquatic products, light industry, heavy industry
and other industries. Such as raw materials, crude drugs, Chinese
Herbal Medicine, extracts, powders, granules, granules, water
pills, bottles, pigment dyes, dehydrated vegetables, dried fruits,
sausages, plastic resins, electrical components, baking and so on.
Technical specifications
| Industry standard model | Technical Specifications
Model Specifications | Each drying amount
(kg) | With power
(kw) | Consumption of steam
(kg/h) | Radiating area
(m 2 ) | Air volume
(m3/h) | Temperature difference between upper and lower
( o C) | With baking plate | Dimensions
Width × Depth × Height | Supporting car | Equipment weight |
| RXH-14-B | CT-I | 120 | 1.1 | 20 | 20 | 2800 | ±2 | 48 | 2430×1200×2375 | 2 | 1200 |
| RXH-27-B | CT-II | 240 | 2.2 | 40 | 40 | 5200 | ±2 | 96 | 2430×2200×2433 | 4 | 1500 |
| RXH-41-B | CT-III | 360 | 3 | 60 | 80 | 8000 | ±2 | 144 | 3430×2200×2620 | 6 | 2000 |
| RXH-54-B | CT-IV | 480 | 4 | 80 | 100 | 9800 | ±2 | 192 | 4460×2200×2620 | 8 | 2300 |
| RXH-5-C | CT-CO | 25 | 0.45 | 5 | 5 | 3450 | ±2 | 16 | 1130×1100×1750 | 0 | 800 |
| RXH-7-C | CT-C-IA | 50 | 0.45 | 10 | 10 | 3450 | ±2 | 24 | 1400×1200×2000 | 1 | 1, 000 |
| RXH-14-C | CT-C-I | 120 | 0.45 | 18 | 20 | 3450 | ±2 | 48 | 2300×1200×2000 | 2 | 1500 |
| RXH-27-C | CT-C-II | 240 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 2300×2200×2000 | 4 | 1800 |
| RXH-27A-C | CT-C-IIA | 240 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 4460×1200×2290 | 4 | 1800 |
| RXH-41-C | CT-C-III | 360 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | 3430×2200×2000 | 6 | 2200 |
| RXH-42A-C | CT-C-IIIA | 360 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | 2300×3200×2000 | 6 | 2200 |
| RXH-54-C | CT-C-IV | 480 | 1.8 | 72 | 100 | 13800 | ±2 | 192 | 4460×2200×2290 | 8 | 2800 |
| RXH-25-A | High-efficiency high-temperature far-infrared sterilization oven
power matching according to temperature requirements | 1200×1000×1600 | 1 | 1200 |
