What is lithium iron phosphate?
Lithium iron phosphate is a lithium-ion battery electrode material
with the chemical formula LiFePO4 (LFP for short), which is mainly
used in various lithium-ion batteries.
It is the safest positive electrode material for lithium-ion
batteries and does not contain any heavy metal elements that are
harmful to the human body.
Can lithium iron phosphate be dried using a double cone rotary
vacuum dryer?
Lithium iron phosphate can be dried with a double cone rotary
vacuum dryer. This dryer is particularly suitable for drying
lithium iron phosphate and other lithium battery materials because
it has the following characteristics and advantages:
1. Design of double cone rotary vacuum dryer: The equipment is a
double cone rotary tank, cylindrical in the middle and conical at
both ends. This design is conducive to uniform mixing and drying of
materials.
2. Heating method: The tank body is divided into three layers
inside and outside, and the heating medium of the middle jacket can
be steam, circulating hot water or heat transfer oil. This heating
method can effectively transfer heat to the material, thereby
achieving rapid drying.
3. Low energy consumption: The insulation layer of the equipment
uses medium alkali ultra-fine glass wool, which can reduce energy
consumption and improve energy efficiency.
4. Applicable industries: It is widely used in chemical, food,
medicine and other industries, indicating that it has good
versatility and safety.
5. Application of lithium iron phosphate: As a new type of lithium
battery material, lithium iron phosphate has the advantages of high
voltage, large capacity, high energy density, long cycle life, low
self-discharge rate, no memory effect and environmental protection.
It is a cutting-edge material in the lithium battery industry.
In summary, the double cone rotary vacuum dryer is very suitable
for drying lithium iron phosphate and other lithium battery
materials due to its unique design and efficient heating method,
ensuring the drying effect and product quality of lithium iron
phosphate materials.

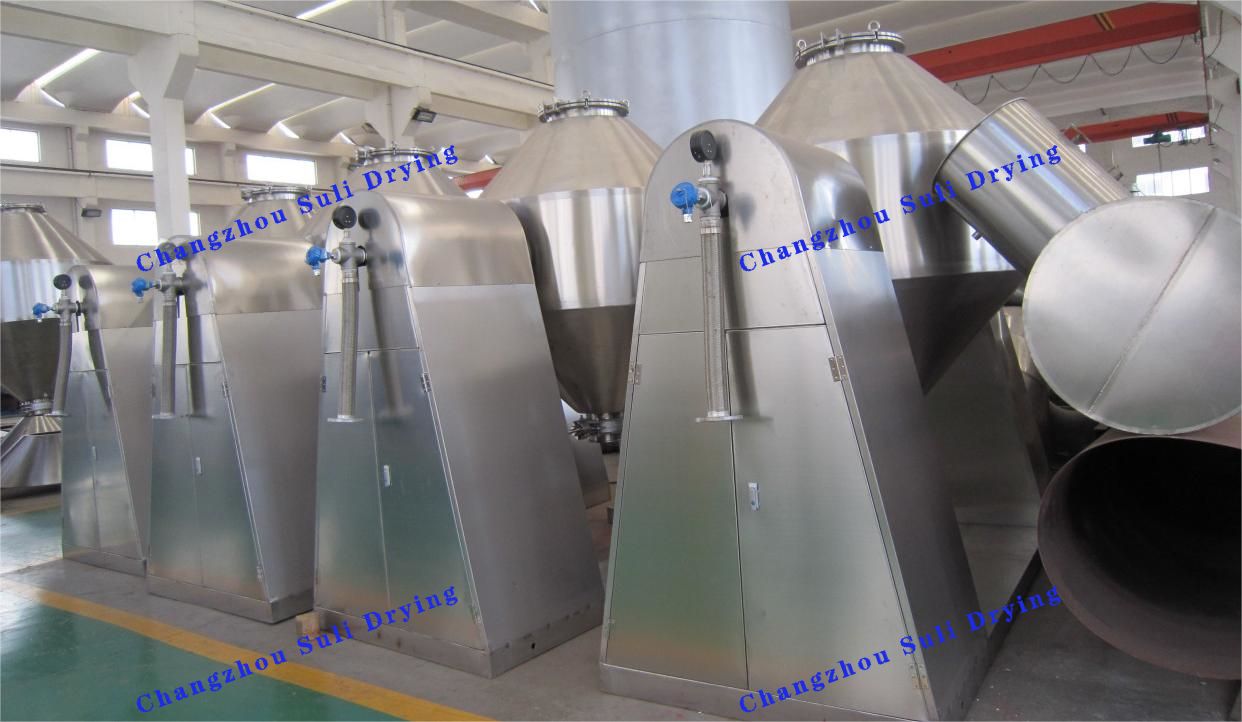

Pictures of our company's double cone dryer:
Technical specification:
| Name / specification | 100 | 350 | 500 | 750 | 1000 |
| Tank content accumulation | 100 | 350 | 500 | 750 | 1000 |
| Loading volume (L) | ≤50 | ≤175 | ≤250 | ≤375 | ≤500 |
| Heating area (m²) | 1.16 | 2 | 2.63 | 3.5 | 4.61 |
| Rotating speed (rpm) | 4 - 6 |
| Motor Power (kw) | 0.75 | 1.1 | 1.5 | 2 | 3 |
| Covering the area length × width(mm) | 2160×800 | 2260×800 | 2350×800 | 2560×1000 | 2860×1300 |
| Height(mm) | 1750 | 2100 | 2250 | 2490 | 2800 |
| Design pressure in the tank (Mpa) | -0.1-0.15 |
| Clamp design pressure (Mpa) | ≤0.3 |
| Operating temperature (oC) | Tank≤85 Clip≤140 |
| When using a condenser, vacuum pump | 2X-15A | 2X-15A | 2X-30A | 2X-30A | 2X-70A |
| Model, power | 2KW | 2KW | 3KW | 3KW | 505KW |
| When you do not need the condenser, the vacuum pump | SK-0.4 | SK-0.8 | SK-0.8 | SK-2.7B | SK-2.7B |
| Model, power | 1.5KW | 2.2KW | 2.2KW | 4KW | 4KW |
| weight(kg) | 800 | 1100 | 1200 | 1500 | 2800 |
| Name / specification | 1500 | 2000 | 3500 | 4500 | 5000 |
| Tank content accumulation | 1500 | 2000 | 3500 | 4500 | 5000 |
| Loading volume (L) | ≤750 | ≤1000 | ≤1750 | ≤2250 | ≤2500 |
| Heating area (m²) | 5.58 | 7.5 | 11.2 | 13.1 | 14.1 |
| Rotating speed (rpm) | 4 - 6 |
| Motor Power (kw) | 3 | 4 | 5.5 | 7.5 | 11 |
| Covering the area length × width(mm) | 3060×1300 | 3260×1400 | 3760×1800 | 3960×2000 | 4400×2500 |
| Height(mm) | 2940 | 2990 | 3490 | 4100 | 4200 |
| Design pressure in the tank (Mpa) | -0.1-0.15 |
| Clamp design pressure (Mpa) | ≤0.3 |
| Operating temperature (oC) | -0.1-0.15 |
| When using a condenser, vacuum pump | JZJX300-8 | JZJX300-4 | JZJX600-8 | JZJX600-4 | JZJX300-4 |
| Model, power | 7KW | 9.5KW | 11KW | 20.5KW | 22KW |
| When you do not need the condenser, the vacuum pump | SK-3 | SK-6 | SK-6 | SK-9 | SK-10 |
| Model, power | 5.5KW | 11KW | 11KW | 15KW | 18.5KW |
| weight(kg) | 3300 | 3600 | 6400 | 7500 | 8600 |
