Application of hot air circulation oven:
Hot air circulation oven is used for heating, curing, drying and
dehydrating materials in the pharmaceutical, chemical, food,
agricultural and sideline products, aquatic products, light
industry and other industries. Such as raw materials, Chinese
herbal medicine slices, extracts, powders, granules, dehydrated
vegetables, etc.
Scope of application:
Hot air oven is suitable for baking chemical gases and food
processing items to be baked, ink curing, paint film drying, etc.
It is widely used in electronics, motors, communications,
electroplating, plastics, hardware chemicals, instruments,
printing, pharmaceuticals, PC boards, powders, impregnation,
spraying, glass, wood building materials, etc. Precision baking,
drying, tempering, preheating, shaping, processing, etc.; internal
heat circulation, the baked objects are heated evenly.
Performance characteristics:
Most of the hot air circulates in the box, with high thermal
efficiency and energy saving. Using forced ventilation, the box is
equipped with an adjustable air distribution plate, the material is
dried evenly, and the heat source can be steam, hot water,
electricity, and far infrared, with a wide range of choices. The
whole machine has low noise and balanced operation. The temperature
is automatically controlled and easy to install and maintain. It
has a wide range of applications and can dry various materials. It
is a universal drying equipment.
Technical specification:
| Industry standard model | Technical Parameters Model specification | Dry each time
(kg) | Applied power
(kw) | Steam
(kg/h) | Cooling area
(m2) | Air volume
(m³/h) | Up and down temperature difference
(oC) | Use a plate | Dimensions Facial width × depth × height | Supporting hand cartar | Equipment weight |
| RXH-14-B | CT-Ⅰ | 120 | 1.1 | 20 | 20 | 2800 | ±2 | 48 | 2430×1200×2375 | 2 | 1200 |
| RXH-27-B | CT-Ⅱ | 240 | 2.2 | 40 | 40 | 5200 | ±2 | 96 | 2430×2200×2433 | 4 | 1500 |
| RXH-41-B | CT-Ⅲ | 360 | 3 | 60 | 80 | 8000 | ±2 | 144 | 3430×2200×2620 | 6 | 2000 |
| RXH-54-B | CT-Ⅳ | 480 | 4 | 80 | 100 | 9800 | ±2 | 192 | 4460×2200×2620 | 8 | 2300 |
| RXH-5-C | CT-C-O | 25 | 0.45 | 5 | 5 | 3450 | ±2 | 16 | 1130×1100×1750 | 0 | 800 |
| RXH-7-C | CT-C-ⅠA | 50 | 0.45 | 10 | 10 | 3450 | ±2 | 24 | 1400×1200×2000 | 1 | 1000 |
| RXH-14-C | CT-C-Ⅰ | 120 | 0.45 | 18 | 20 | 3450 | ±2 | 48 | 2300×1200×2000 | 2 | 1500 |
| RXH-27-C | CT-C-Ⅱ | 240 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 2300×2200×2000 | 4 | 1800 |
| RXH-27A-C | CT-C-ⅡA | 240 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 4460×1200×2290 | 4 | 1800 |
| RXH-41-C | CT-C-Ⅲ | 360 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | 3430×2200×2000 | 6 | 2200 |
| RXH-42A-C | CT-C-ⅢA | 360 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | 2300×3200×2000 | 6 | 2200 |
| RXH-54-C | CT-C-Ⅳ | 480 | 1.8 | 72 | 100 | 13800 | ±2 | 192 | 4460×2200×2290 | 8 | 2800 |
| RXH-25-A | High -efficiency High temperature Far -infrared sterilization oven
power supporting according to temperature requirements | 1200×1000×1600 | 1 | 1200 |

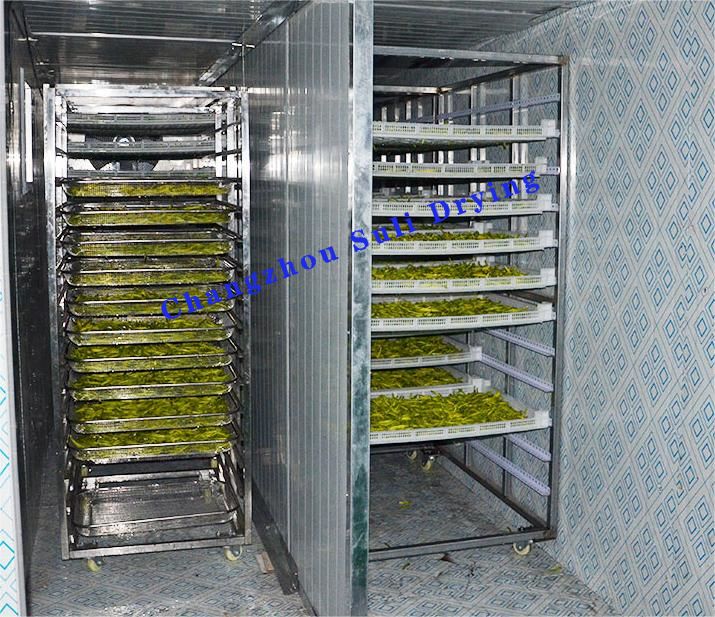

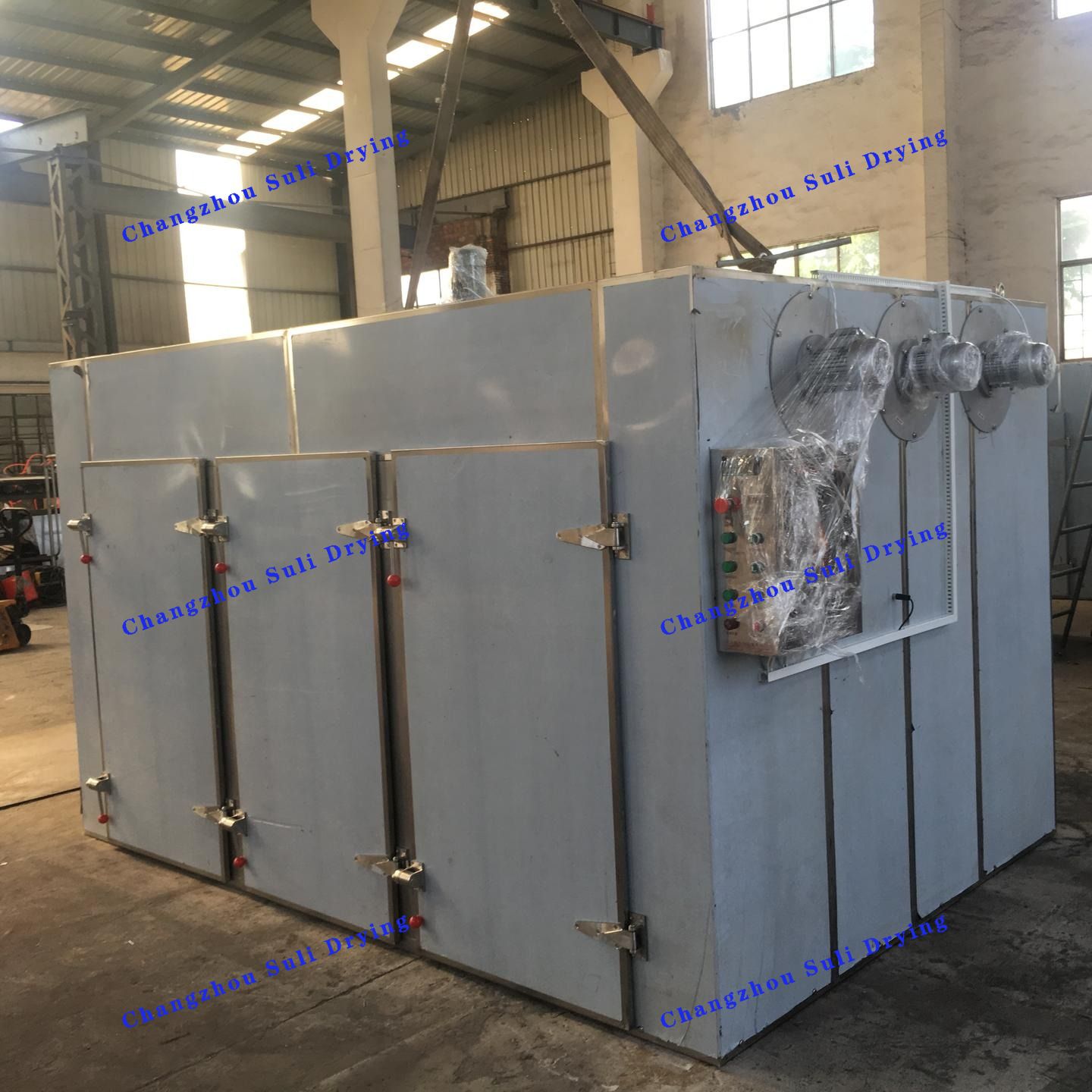

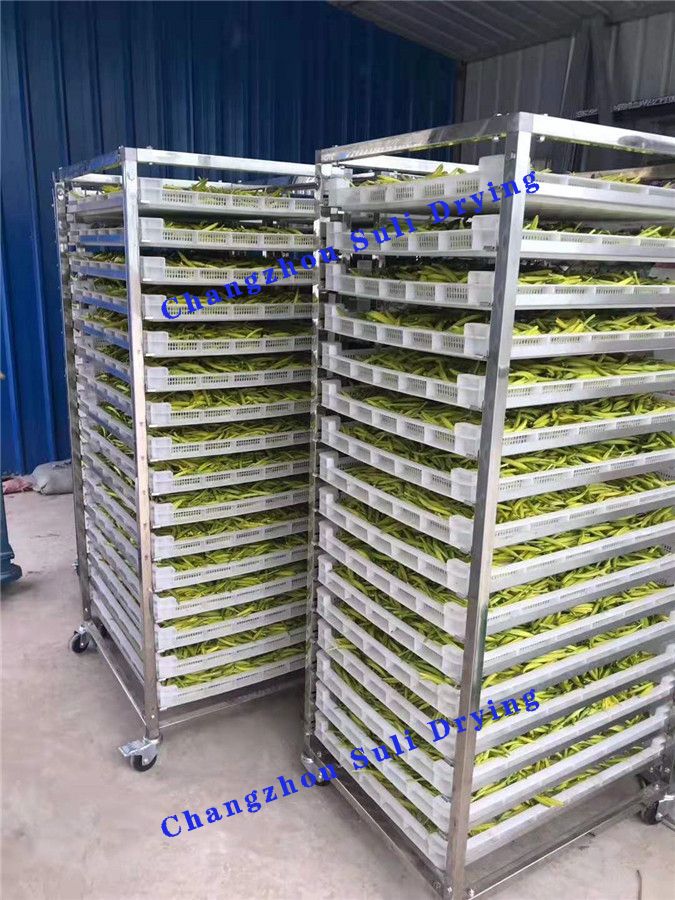

On-site shooting of Suli Drying Factory:
