HG Drum Scraper Dryer For Heat Sensitive Materials With Short Drying Time

Ask Lasest Price
Brand Name :	suli
Model Number :	HG
Certification :	ISO9001
Price :	Negotiable
Payment Terms :	T/T

Add to Cart

Product Details
Company Profile

HG Drum Scraper Dryer For Heat Sensitive Materials With Short Drying Time

Overview

The working principle of HG series drum dryer is to form a thin film on the drum surface heated by water vapor or other carriers, and the drying is completed during the drum rotation. The product is scraped off with a scraper, and the exposed drum surface is contacted with the raw material again to form a thin film for drying.

Features

★ Steam or heat transfer oil is used as the heat source, with a large heating area, high thermal efficiency and uniform heating.

★ High drying rate, the heat transfer and mass transfer process of the wet material film on the drum wall is consistent from inside to outside, and the temperature gradient is large, so that the material film maintains a high evaporation intensity.

★ Short drying time, generally about 7-30 seconds, suitable for heat-sensitive materials.

★ Easy to operate and maintain.

Application

HG series drum dryer is widely used in the drying process of sticky and paste-like materials in food, chemical, pharmaceutical and other industries.

Technical Parameters

Specification	Roll Size	Effective heating area m²	Dry ability kg.H₂O/m².h	Steam consumption kg/h	Motor Power kw	Dimensions mm	Weight kg
HG-600	Φ600×800	1.12	40-70	100-175	2.2	1700×800×1500	850
HG-700	Φ700×1000	1.65	60-90	150-225	3	2100×1000×1800	1210
HG-800	Φ800×1200	2.26	90-130	225-325	4	2500×1100×1980	1700
HG-1000	Φ1000×1400	3.30	130-190	325-475	5.5	2700×1300×2250	2100
HG-1200	Φ1200×1500	4.24	160-250	400-625	7.5	2800×1500×2450	2650
HG-1400	Φ1400×1600	5.28	210-310	525-775	11	3150×1700×2800	3220
HG-1600	Φ1600×1800	6.79	270-400	675-1000	11	3350×1900×3150	4350
HG-1800	Φ1800×2000	8.48	330-500	825-1250	15	3600×2050×3500	5100
HG-1800A	Φ1800×2500	10.60	420-630	1050-1575	18.5	4100×2050×3500	6150

Note: If the customer needs it, it can design and manufacture the upper feed dual roller scraper dryer for the customer.

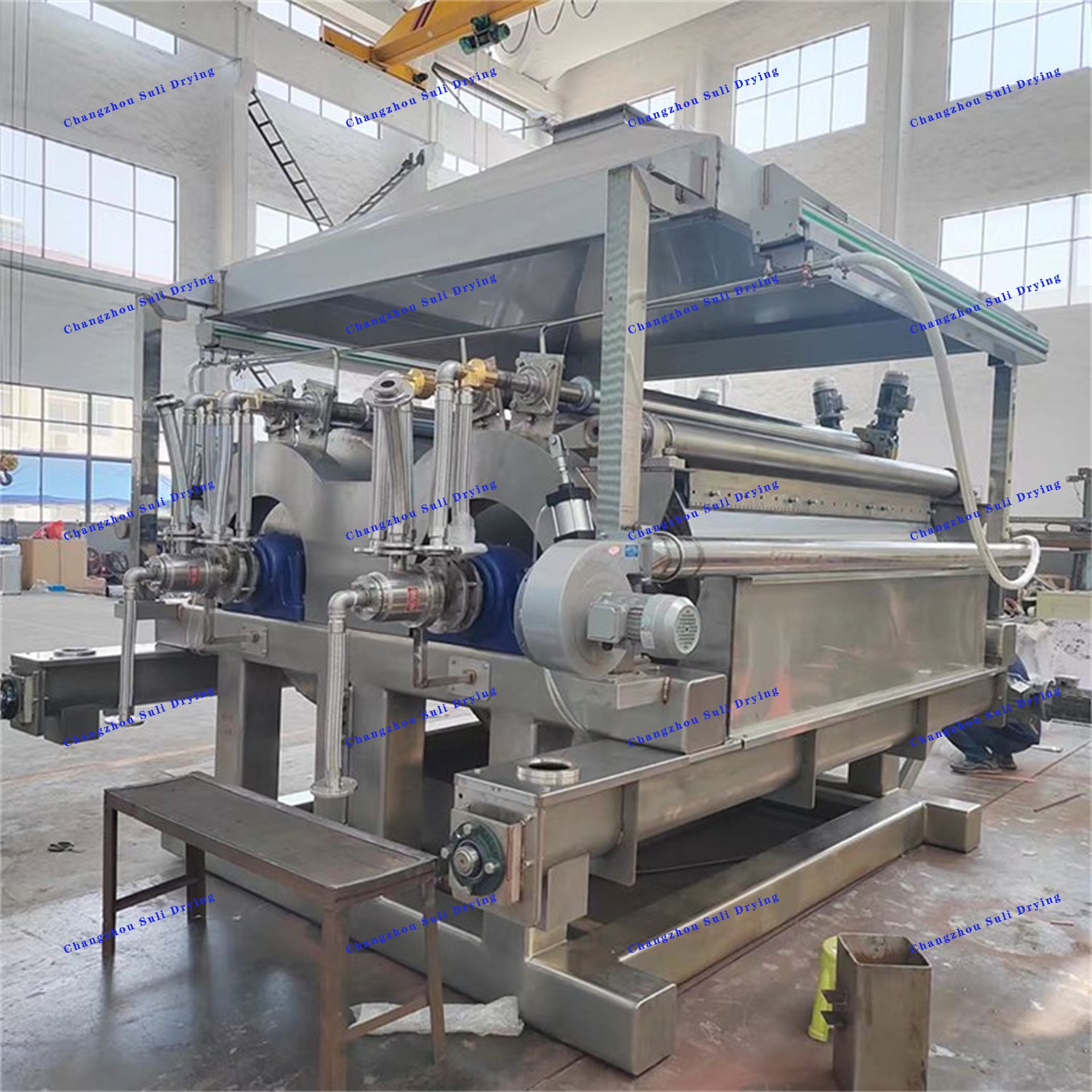

Equipment Pictures
